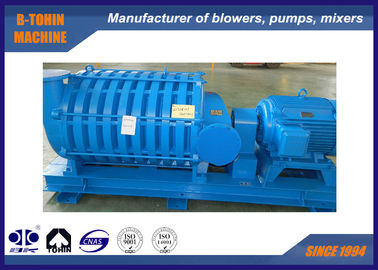

70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min

70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min

รายละเอียดสินค้า:
Place of Origin: China
ชื่อแบรนด์: BK
ได้รับการรับรอง: ISO9001/ISO14001
Model Number: D50-1.7
การชำระเงิน:
Minimum Order Quantity: 1 set
ราคา: ต่อรองได้
Packaging Details: Export standard wooden case
Delivery Time: 20-40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 10 SETS per month
ติดต่อ
รายละเอียดสินค้า
ความจุอากาศ: 50m³/นาที ความดันที่แตกต่างกันออกไป: 98kpa
พลังงานมอเตอร์: 90kW บอร์: DN200(8”)
ประเภทการระบายความร้อน: น้ำ ประเภทขับเคลื่อน: การมีเพศสัมพันธ์
แอปพลิเคชัน: การบำบัดน้ำเสีย, เตาหลอม, โรงงานเตรียมถ่านหิน, การลอยของเหมือง, ก๊าซเคมี, อุตสาหกรรมสูญญากาศและการขน ทิศทางการไหลของอากาศ: ตัวเลือกแนวตั้งและแนวนอนสำหรับลูกค้า
อุณหภูมิอินพุต: 20 ℃ ความเร็ว: 2950 รอบ/นาที
น้ำหนักตัวเป่าลม: 3,000 กิโลกรัม
เน้น:

high pressure centrifugal blower

,

centrifugal air blower





90KW Multistage Centrifugal Blower, 70KPA air compressor for backwash, 50m3/min






About D series multi-stage centrifugal blower


D series Multi-stage Centrifugal Blower is designed by famous institute in China and engineers of B-Tohin. The blower has several impellers connected by connection rod. The inlet air is compressed stage by stage and finally discharge air capacity from outlet.





Specifications



Model No.

D50-1.7

Discharge differential pressure

70KPA

Motor power

90KW

Air capacity

50m3/min

Motor type

380/400/415/440V, 3PHASES, 50/60HZ

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Speed 2950 r/min
Shaft Power

74KW

Motor Power 90KW
Input Pressure 98KPa
Output Pressure 68.6KPa
Input Temp. 20℃
Weight 3000KG






Features

  • Compact structure, elegant appearance, high stability, convenient installation and maintenance

  • Smooth operation

  • Low noise

  • Oil-free Blower

  • Impeller is featured with special composite linear to reduce internal leakage and improve volumetric efficiency.

  • Easy to be adjusted

  • Inlet rings are equipped for impeller of every stage, and  labyrinth seals are set between stages and at the two ends of  housing for preventing gas leakage.

  • air cooling and water cooling designed for exhaust bearing pedestal, prolonged bearing service life.

  • Two flow direction for option : vertical and horizontal

  • Blower and motor connected by coupling, other connection methods available according to different technique requirements.




Structure of blower main body



70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 0








Assembling drawing of blower package





70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 1



Standard supply of scope



1. Blower main body

2. Inlet muffler (with air filter)

3. Public base for motor and blower(including coupling cover)

4. Inlet manual butterfly valve

5. Motor

6. Pressure gauge

7. Mounting bolts and connection accessories

8. Check valve



Optional accessories:

1. outlet silencer

2. outlet butterfly valve (manual or eletrical)

3. release valve

4. release silencer

5. reducer

6. flexible joint

7. acoustic enclosure

8. control cabinet




Dimensions of blower



Horizontal flow direction 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 2 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 3
Vertical flow direction 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 4 70KPA 90KW Multistage Centrifugal Blower air compressor for backwash 50m3/min 5



1. blower base   2. blower main body   3. inlet silencer   4. butterfly valve   5. coupling   6. electric motor



Model Size(mm)
A B C
D50-1.7 1150 1285 2630
