สถานที่กำเนิด: | China |
ชื่อแบรนด์: | BK |
ได้รับการรับรอง: | ISO9001/ISO14001 |
หมายเลขรุ่น: | D80-1.7 |
จำนวนสั่งซื้อขั้นต่ำ: | 1 set |
---|---|
ราคา: | Negotiation |
รายละเอียดการบรรจุ: | Export standard wooden case |
เวลาการส่งมอบ: | 20-40 working days, depends on order amount and specification |
เงื่อนไขการชำระเงิน: | L/C, T/T |
สามารถในการผลิต: | 10 SETS per month |
ความจุอากาศ: | 80m3 / นาที | ปล่อยแรงดันที่แตกต่าง: | 70KPA |
---|---|---|---|
กำลังมอเตอร์: | 132KW | ปล่อยเจาะ: | DN300 (12” ) |
ประเภทระบายความร้อน: | น้ำ | ประเภทขับเคลื่อน: | การมีเพศสัมพันธ์ |
ใบสมัคร: | การบำบัดน้ำเสีย, เตาหลอม, โรงงานเตรียมถ่านหิน, เหมืองลอย, ก๊าซเคมี, อุตสาหกรรมสูญญากาศ, และการขนส่งก | ||
แสงสูง: | multi stage centrifugal blowers,high pressure centrifugal blower |

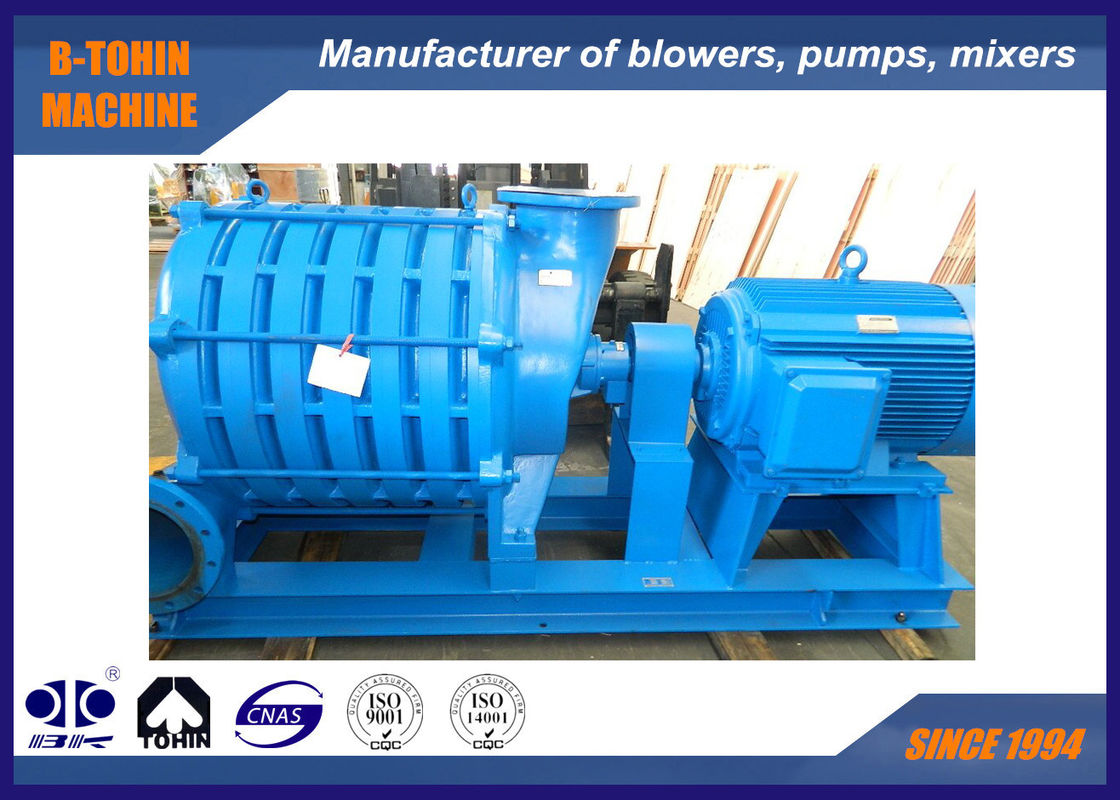

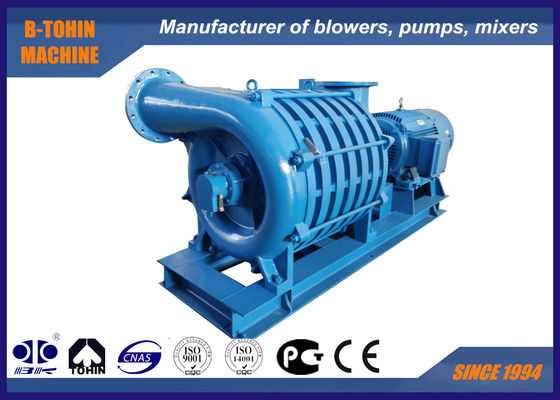

Low Noise Multistage Centrifugal Blower, wastewater treatment air blower
About D series mult-stage centrifugal blower
Specifications
Model No. |
D80-1.7 |
Discharge differential pressure |
70KPA |
Air capacity |
80m3/min |
Motor power |
132KW |
Shaft power |
110KW |
Motor type |
380/400/415/440V/6KV/10KV, 3PHASES, 50/60HZ |
Motor brand |
Standard: Siemens Beide or Wannan motor Siemens and ABB motor for your option |
Features
1. Vibration on bearings < 2.5mm/s for all fans and blowers
2. Long service life
3. Low noise: High efficiency type noise, sound proofed with obstacle exists, so there's nearly no noise outside the blower room.
4. Low running cost: energy consumption than other type blowers.
5. High efficiency
6. Heavy duty and sturdy construction
7. Oil free
8. Air capacity adjustable by inlet butterfly valve
Structure of blower main body
Assembling drawing of blower package
Standard supply of scope
1. Blower main body
2. Inlet muffler (with air filter)
3. Public base for motor and blower(including coupling cover)
4. Inlet manual butterfly valve
5. Motor
6. Pressure gauge
7. Mounting bolts and connection accessories
8. Check valve
